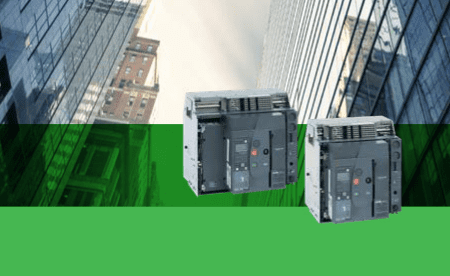

MasterPact NW

High current air circuit breakers up to 4000 A

Part of Easy Series

EasyPact MVS is a range of LV power circuit breakers and switch-disconnectors designed to optimize cost and contribute to the safety and reliable performance of your electrical distribution network. The solution covers ratings from 800 to 4000 A in one single frame size.

The worldwide benchmark for high current circuit breakers

MasterPact NW circuit breakers are equipped with MicroLogic control units that offer built-in power and energy metering in addition to basic or advanced protection functions. Two sizes are sufficient to cover applications from 800 to 6300 A, with breaking capacity from 42 to 150 kA.

The range comes with a wide choice of standardized accessories. The universal design of the MasterPact circuit breaker line allows most accessories to be used across the entire line. It enables standardization of electrical switchboards by providing peace of mind in terms of choice, installation, and operation.

Optimized safety

Faultless protection
Increased uptime with improved coordination with MicroLogic electronic trip unit adjustability
Complete selectivity and coordination
High resistance to environmental stresses

Integrated monitoring for energy efficiency

Improved uptime with complete monitoring solution in Smart Panels
Seamless integration into power monitoring systems enabling to track energy consumption trends, anticipate potential damage and improve network reliability
Local and remote communication with trip cause (earth leakage, overload, short-circuit) and alarms (earth leakage, overload) allowing proactive operational and energy efficiency
Advanced MicroLogic control unit can assist in providing corrective, preventive and predictive maintenance, and energy management to identify potential savings: energy consumption data, operation follow-up, network monitoring, preventative and predictive maintenance information, pre-alarm and alarm events

Seamless installation

Compactness
Standardized range of auxiliaries and accessories
Wide range of online and offline software tools that improve productivity at all stages of your project

Fixed Circuit Breakers (3P)

Drawout Circuit Breakers (3P)

Air Circuit Breakers - MasterPact NW

Fixed Circuit Breakers (3P)

Micrologic2.0E

Micrologic6.0E

Micrologic2.0E

Micrologic6.0E

Air Circuit Breakers - MasterPact MTZ

Drawout Circuit Breakers (3P)

Micrologic2.0E

Micrologic6.0E

Micrologic2.0E

Micrologic6.0E

ประเภท Frame	รายละเอียดสินค้า Frame (A)	Type N1		Type H1				Type H2
		Icu = Ics = 42kA		Icu = Ics = 66kA		Icu = Ics = 100kA		Icu = Ics = 100kA		Icu = Ics = 150kA
		รหัสสินค้า	ราคา (บาท)	รหัสสินค้า	ราคา (บาท)	รหัสสินค้า	ราคา (บาท)	รหัสสินค้า	ราคา (บาท)	รหัสสินค้า	ราคา (บาท)
Single pole frame	800 MasterPact NW08	NW0803F2EM	125,500.-	NW0813F2EM	138,000.-			NW0823F2EM	147,500.-
	1000 MasterPact NW10	NW1003F2EM	132,000.-	NW1013F2EM	146,500.-			NW1023F2EM	151,500.-
	1250 MasterPact NW12	NW1203F2EM	147,500.-	NW1213F2EM	155,500.-			NW1223F2EM	–
	1600 MasterPact NW16	NW1603F2EM	171,000.-	NW1613F2EM	178,000.-			NW1623F2EM	191,500.-
	2000 MasterPact NW20			NW2013F2EM	210,000.-			NW2023F2EM	254,500.-
	2500 MasterPact NW25			NW2513F2EM	265,500.-			NW2523F2EM	332,500.-
	3200 MasterPact NW32			NW3213F2EM	336,000.-			NW3223F2EM	384,000.-
	4000 MasterPact NW40			NW4013F2EM	500,500.-			NW4023F2EM	574,500.-
Double pole frame	4000b MasterPact NW40b					NW4B13F2EM	639,500.-			NW4B23F2EM	711,500.-
	5000 MasterPact NW50					NW5013F2EM	734,500.-			NW5023F2EM	953,000.-
	6300 MasterPact NW63					NW6313F2EV	1,010,000.-			NW6323F2EV	1,190,000.-

ประเภท Frame	รายละเอียดสินค้า Frame (A)	Type N1		Type H1				Type H2
		Icu = Ics = 42kA		Icu = Ics = 66kA		Icu = Ics = 100kA		Icu = Ics = 100kA		Icu = Ics = 150kA
		รหัสสินค้า	ราคา (บาท)	รหัสสินค้า	ราคา (บาท)	รหัสสินค้า	ราคา (บาท)	รหัสสินค้า	ราคา (บาท)	รหัสสินค้า	ราคา (บาท)
Single pole frame	800 MasterPact NW08	NW0803F6EM	196,500	NW0813F6EM	210,000			NW0823F6EM	229,500
	1000 MasterPact NW10	NW1003F6EM	207,000	NW1013F6EM	217,500			NW1023F6EM	234,000
	1250 MasterPact NW12	NW1203F6EM	216,500	NW1213F6EM	227,500			NW1223F6EM	236,000
	1600 MasterPact NW16	NW1603F6EM	–	NW1613F6EM	259,500			NW1623F6EM	268,000
	2000 MasterPact NW20			NW2013F6EM	275,000			NW2023F6EM	314,000
	2500 MasterPact NW25			NW2513F6EM	338,000			NW2523F6EM	395,500
	3200 MasterPact NW32			NW3213F6EM	401,500			NW3223F6EM	445,000
	4000 MasterPact NW40			NW4013F6EM	567,500			NW4023F6EM	619,000
Double pole frame	4000b MasterPact NW40b					NW4B13F6EM	726,000			NW4B23F6EM	762,000
	5000 MasterPact NW50					NW5013F6EM	833,500			NW5023F6EM	979,500
	6300 MasterPact NW63					NW6313F6EV	1,215,000			NW6323F6EV	1,215,000

ประเภท Frame	รายละเอียดสินค้า Frame (A)	Type N1		Type H1				Type H2
		Icu = Ics = 42kA		Icu = Ics = 66kA		Icu = Ics = 100kA		Icu = Ics = 100kA		Icu = Ics = 150kA
		รหัสสินค้า	ราคา (บาท)	รหัสสินค้า	ราคา (บาท)	รหัสสินค้า	ราคา (บาท)	รหัสสินค้า	ราคา (บาท)	รหัสสินค้า	ราคา (บาท)
Single pole frame	800 MasterPact NW08	NW0803D2EM	–	NW0813D2EM	182,500.-			NW0823D2EM	188,500.-
	1000 MasterPact NW10	NW1003D2EM	185,500.-	NW1013D2EM	189,500.-			NW1023D2EM	190,500.-
	1250 MasterPact NW12	NW1203D2EM	–	NW1213D2EM	209,000.-			NW1223D2EM	212,000.-
	1600 MasterPact NW16	NW1603D2EM	218,500.-	NW1613D2EM	228,500.-			NW1623D2EM	250,500.-
	2000 MasterPact NW20			NW2013D2EM	278,000.-			NW2023D2EM	318,500.-
	2500 MasterPact NW25			NW2513D2EM	347,000.-			NW2523D2EM	400,500.-
	3200 MasterPact NW32			NW3213D2EM	445,000.-			NW3223D2EM	482,000.-
	4000 MasterPact NW40			NW4013D2EM	634,500.-			NW4023D2EM	683,000.-
Double pole frame	4000b MasterPact NW40b					NW4B13D2EM	780,500.-			NW4B23D2EM	856,000.-
	5000 MasterPact NW50					NW5013D2EM	846,500.-			NW5023D2EM	1,110,000.-
	6300 MasterPact NW63					NW6313D2EV	1,165,000.-			NW6323D2EV	1,510,000.-

MasterPact NW

The worldwide benchmark for high current circuit breakers

Optimized safety

Integrated monitoring for energy efficiency

Seamless installation

Fixed Circuit Breakers (3P)

Drawout Circuit Breakers (3P)

Air Circuit Breakers - MasterPact NW

Fixed Circuit Breakers (3P)

Air Circuit Breakers - MasterPact MTZ

Drawout Circuit Breakers (3P)
